ASSEMBLY

PLANING

ASSEMBLY dismantle the cutting system of the plane, to place the blade trapeze cutter on the magnet

Fixation of the sole by means of the slice and of the butterfly, without blocking him to allow the regulation of the blade.

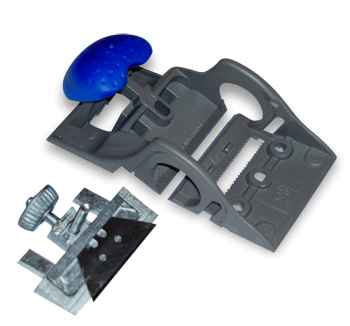

Defuse(Unsettle) the sole of the plane, place the blade trapeze on the magnet(affectionate)
Assembly(Editing) of the sole equipped with the blade in the plane.
Fixation(Binding) of the sole by means of the slice and of the butterfly, without blocking(surrounding) him(it) to allow the regulation of the blade.

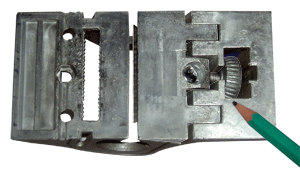

The regulation of the blade is made by means of the thumb wheel, once the made regulation, to squeeze(tighten) the butterfly.

POSITION PLANE

Titre des colonnes


Assembly(Editing) of the cheeks of protection, to remove(kidnap) them, urge on "PUSH" (do not to use screwdriver)

Planing

POSITION PLANE

Haut de page

Planing Position of the guide in 90 .45 .30 .60 °

Titre des colonnes

Tableau d'images

Guide in 30° right	Guide in 60° right	Guide in 90° right	Guide in 30 ° left
Guide in 60 ° left	Guide in 45 ° left	Guide in 45° right	Guide in 90 ° left

Creation of a retaining wall for assembly

Titre des colonnes


Position for chanfreiner

Position for chanfreiner 30° 45° 60°

Tightening of the guide in the rack(housewarming)

Guide positions the plane

To realize a grain of barley blade on

To realize a grain(bead) of barley blade on the edge of the plane

Haut de page

Position scraper

Assembly of the adapter (plaque with 5 earthed up) for blade with crack or with holes, the blade can be deported to the left or to the right

Titre des colonnes

Assembly(Editing) of the adapter delivered with the plane for blades to crack or to holes

Defuse(Unsettle) the sole of the plane, place in the first one the adapter on the magnet(affectionate), then place the blade to use on the adapter, to position the sole in position before of the plane then to fix it with the butterfly

Haut de page

To pull down the morfil of the blade, place the plane on the edge of a table, then smooth the morfil of the blade of the scraper with a tool (as a cutter equipped with our blade grindstone)

Smooth the blade 3 times with the placed paralellement cutter at the table then about ten times more strongly the handle of the cutter in supports on the table.

the handle of the cutter in supports on the table.

The blade of the good cutter with dish(flat) to Hold the parallelement cutter at the table, to cross(spend) it, very slightly 3 times on the morfil of him(it) blade to be pulled down(to be reduced).
Put then the cutter on the blade to be pulled down(to be reduced) and on the table in the passer-by a dixaine of time by pressing more strongly on the cutter
The ideal it is to use the gone(taken) up cutter with blade of grindstone that is sometimes supplied with the plane, or which we can buy separately.

Cleaning of the wood to find its tone of origin
